Fresnel lenses are no longer limited to professional optical instruments. Today, this thin, lightweight and highly efficient lens structure is widely used in consumer electronics, smart sensing systems and lighting devices. Its unique ring-shaped micro-structure allows engineers to control light with precision while keeping the overall thickness extremely small — a combination that traditional lenses cannot easily achieve.

As a leading manufacturer with more than 30+ years of experience, Yu Ying Optical supplies custom Fresnel lenses for infrared sensing, LED illumination, solar energy systems, automotive safety and emerging VR/3D applications. Below are eight major consumer-level fields where Fresnel lenses now play an essential role.

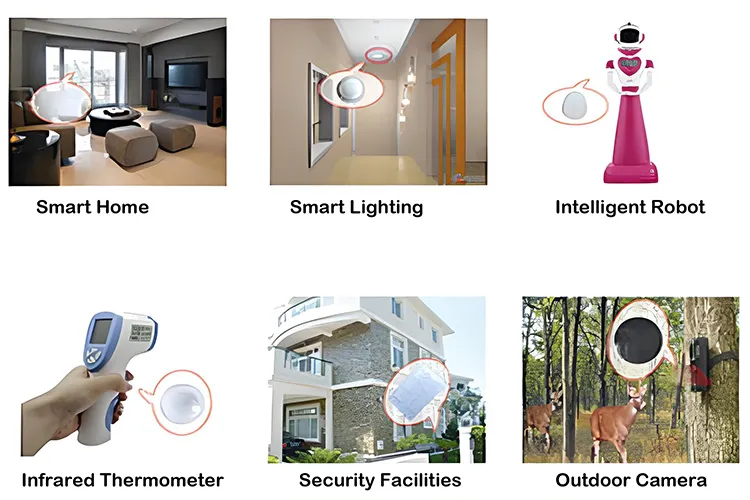

1. Enhancing PIR Motion Sensors

In passive infrared (PIR) devices, Fresnel lenses create alternating “high-sensitivity” and “low-sensitivity” zones.

When a person passes through these zones, the infrared radiation changes rhythmically, allowing the sensor to receive pulsed signals with higher clarity.

This design improves detection accuracy while keeping manufacturing costs low, making Fresnel lenses the standard choice for smart home motion detectors, alarm systems and automatic lighting.

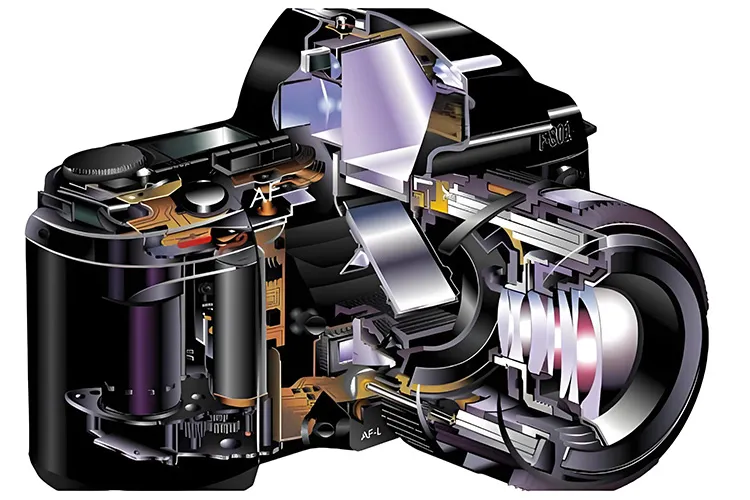

2. Improving Camera Focusing Screens

Modern focusing screens use micro-structured Fresnel patterns to deliver brighter, sharper visibility during manual or assisted focusing.

Combined with split-image or micro-prism rings, the screen helps photographers identify the exact moment when the subject comes into focus, even in low-light conditions.

The thin, customizable nature of Fresnel optics makes them ideal for different camera models and shooting scenarios.

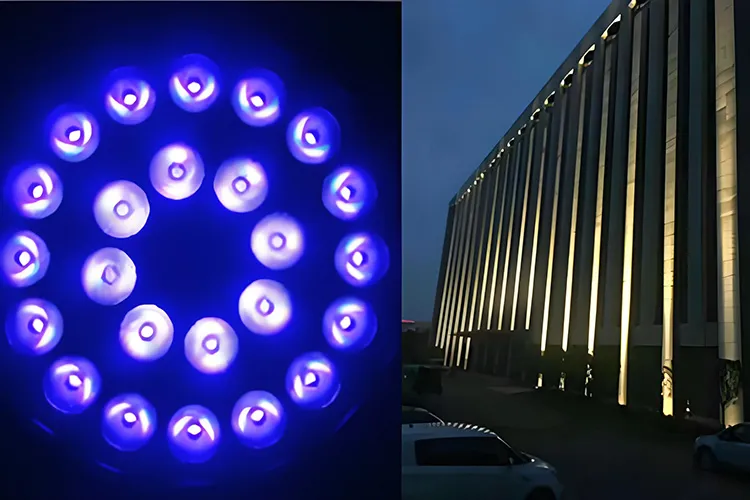

3. LED Spotlight and Beam Control

In LED lighting, Fresnel lenses guide and shape the output beam, increasing brightness and improving the uniformity of illumination.

Whether used in spotlights, stage lights, architectural lighting or signal lamps, they offer better optical efficiency compared with bulky traditional convex lenses.

Their lightweight structure also helps reduce overall lamp size and cost.

4. Wide-Angle Rearview for Vehicles

A flexible Fresnel lens applied to the rear window significantly increases the driver’s field of view.

It reveals blind spots behind hatchbacks, buses or delivery vehicles, enabling safer reversing and parking.

This simple yet effective solution is widely adopted because of its low cost and strong real-world practicality.

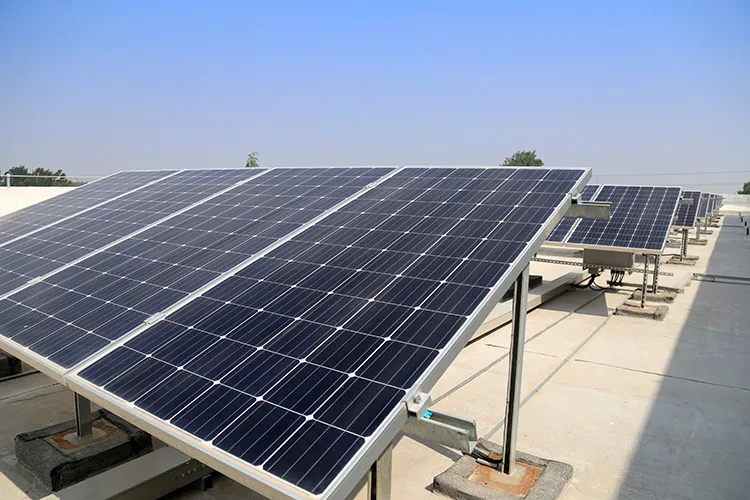

5. Concentrated Photovoltaics (CPV)

In high-concentration photovoltaic systems, Fresnel lenses act as the primary concentrator.

By directing sunlight onto a smaller solar cell area, they boost energy output several times beyond ordinary flat panels.

Yu Ying Optical designs CPV Fresnel lenses tailored to customer requirements such as concentration ratio, module size and environmental durability.

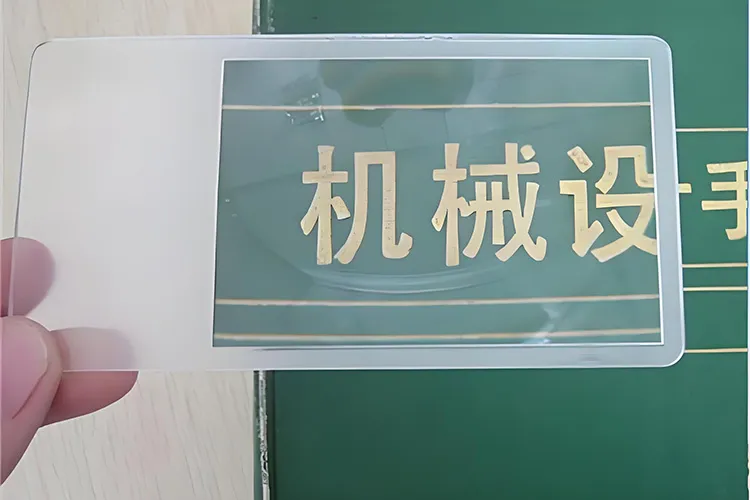

6. Ultra-Thin Magnifier Lenses Fresnel Design

PVC or acrylic Fresnel magnifiers can be manufactured as thin as 0.45–0.9 mm, making them ideal for portable reading tools, credit-card magnifiers and emergency kits.

The circular micro-groove pattern produces diffraction-based magnification while maintaining high clarity.

This provides a lightweight alternative to traditional heavy glass magnifiers.

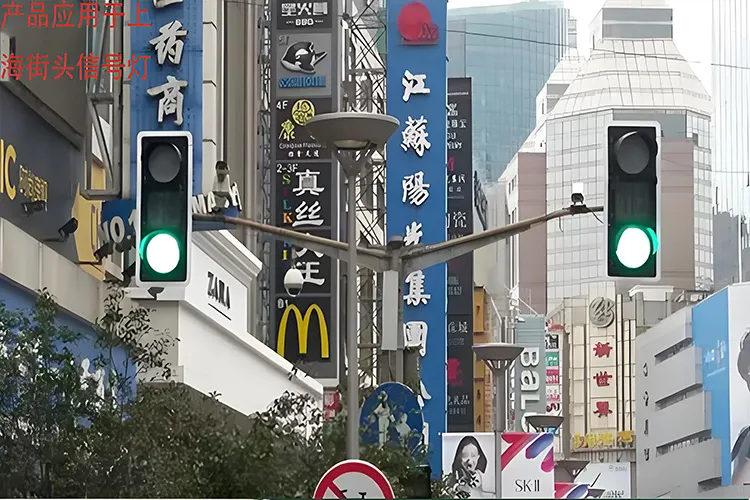

7. Traffic Signal Optics

With high-power LEDs becoming mainstream, modern traffic lights increasingly use a combination of Fresnel lenses and micro-array structures to replace clusters of multiple LEDs.

This design reduces power consumption and simplifies maintenance while maintaining brightness and visibility.

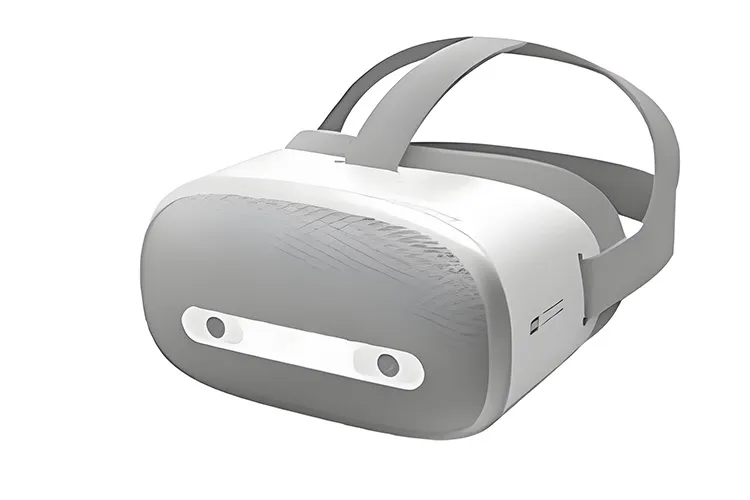

8. 3D and VR Optical Enhancement

Many lightweight 3D glasses and VR devices utilize Fresnel optics to reduce lens weight and improve comfort.

By adjusting groove density and curvature, designers can achieve different depth effects, contrast levels and visual clarity.

Yu Ying Optical provides design support for custom VR/AR Fresnel optics based on customer requirements.

Conclusion

Fresnel optics are becoming a foundational technology in smart devices and consumer products.

From sensing and illumination to energy and immersive displays, their versatility continues to open new possibilities for global manufacturers.

With decades of expertise and fully in-house mold development, Yu Ying Optical remains committed to supplying reliable, high-precision Fresnel lenses that help customers accelerate product innovation worldwide.
